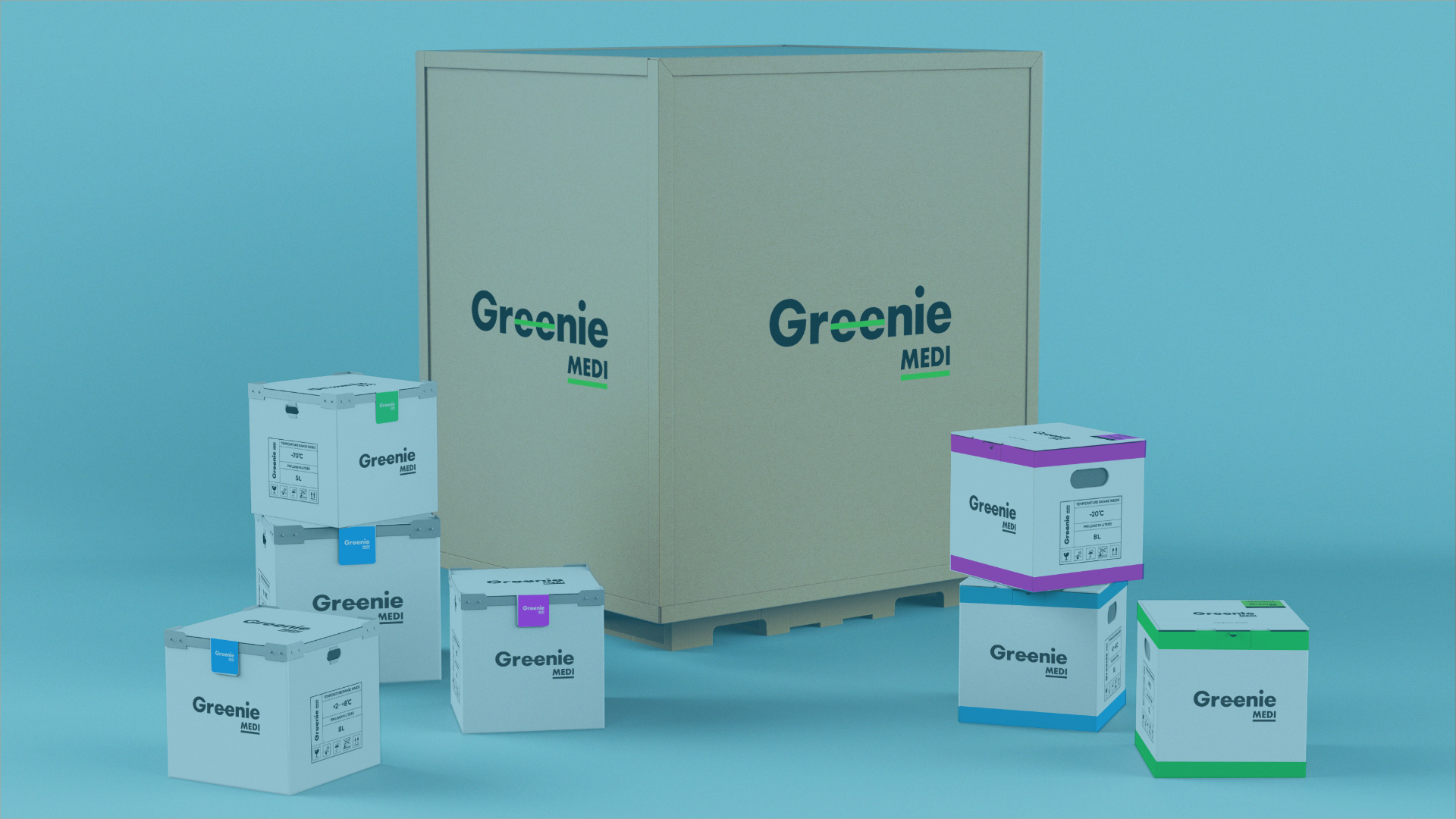

BETTER COLD CHAIN WITH TEMPERATURE-CONTROLLED PACKAGING

BETTER COLD CHAIN WITH TEMPERATURE-CONTROLLED PACKAGING

BETTER COLD CHAIN WITH TEMPERATURE-CONTROLLED PACKAGING

05G08L_120H
Multi-use
Coming soon
Temp range
+2°C ~ +8°C
Duration
120hr
Payload
8L
Payload
size
205 x 205 x 195mm³
External
size
445 x *430 x 465mm³
05G11L_24H
Multi-use
Coming soon
Temp range
+2°C ~ +8°C
Duration
24hr
Payload
11L
Payload
size
255 x 195 x 225mm³
External
size
405 x 370 x 378mm³
05G13L_48H
Multi-use
Coming soon
Temp range
+2°C ~ +8°C
Duration
48hr
Payload
13L
Payload
size
235 x 235 x 235mm³
External
size
445 x 430 x 465mm³

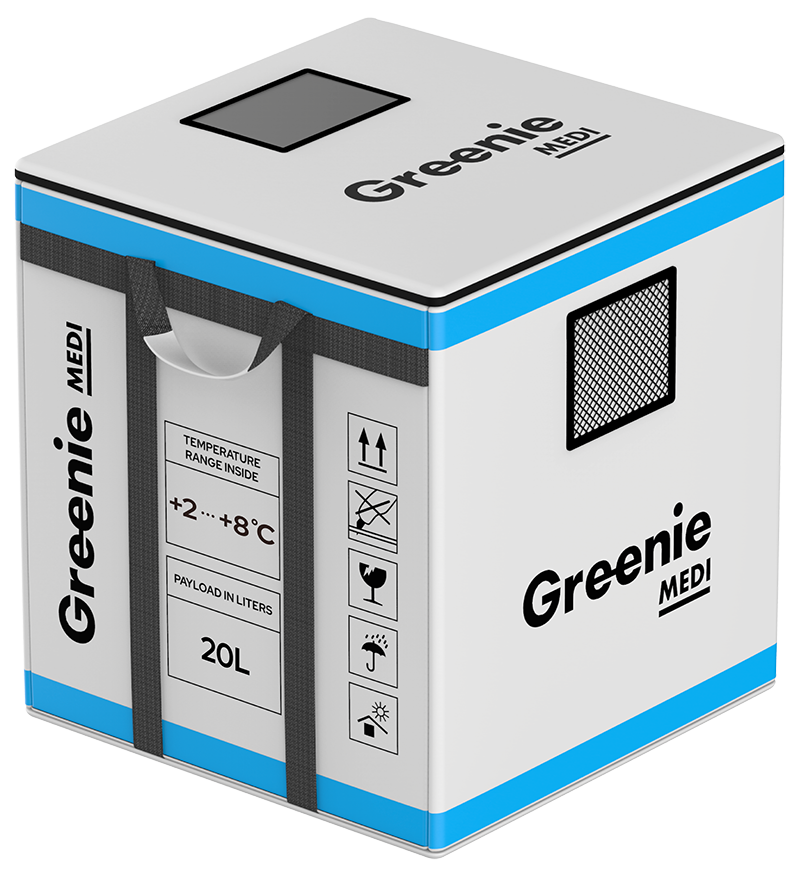

05G20L_12H, 36H
Multi-use
Coming soon
Temp range
+2°C ~ +8°C
Duration
12hr, 36hr
Payload
20L
Payload
size
350 x 225 x 255mm³ 350 x 225 x 255mm³
External
size
505 x 380 x 445mm³ 505 x 405 x 405mm³
05G31L_48H
Multi-use
Coming soon
Temp range
+2°C ~ +8°C
Duration
48hr
Payload
31L
Payload
size
370 x 275 x 305mm³
External
size
495 x 400 x 455mm³
20M08L_72H
Multi-use
Coming soon
Temp range
−25°C ~ −15°C
Duration
72hr
Payload
8L
Payload
size
205 x 205 x 195mm³
External
size
445 x 430 x 465mm³

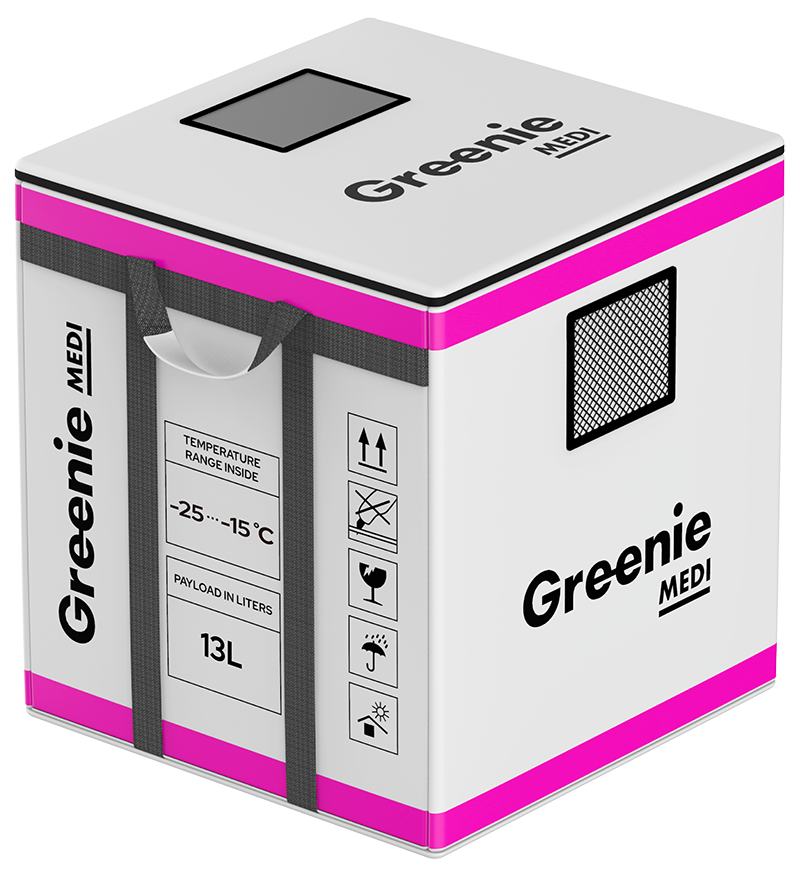

20M13L_36H
Multi-use
Coming soon
Temp range
−25°C ~ −15°C
Duration
36hr
Payload
13L
Payload
size
235 x 235 x 235mm³
External
size
445 x 430 x 465mm³
20M08L_48H
Multi-use
Coming soon
Temp range
−25°C ~ −15°C
Duration
48hr
Payload
8L
Payload
size
205 x 205 x 195mm³
External
size
445 x *430 x 465mm³
60M13L_72H
Multi-use
Coming soon
Temp range
−60°C
Duration
72hr
Payload
13L
Payload
size
235 x 235 x 235mm³
External
size
445 x 430 x 465mm³

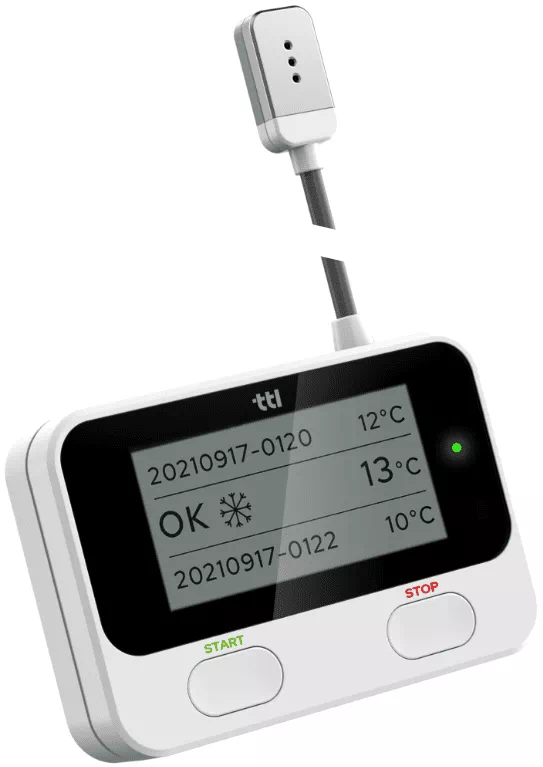

ttl which is data logger

TTL (DATA LOGGER)

Temperature range
-30°C ~ +70°C (±0.48°C)
Data protocol
BLE, NFC
Temperature Interval
10 min (configureable)
Sensor
ISO17025 certified sensor used
Total inspection completed
Battery
Button cell 3V (2ea) Replacement every year
Device
About 3 year life time
Size
77x52x16mm³
Memory
Able to store 1 yr worth of data
(when set at 15min interval)
Display
e-paper (-10°C ~ +60°C)

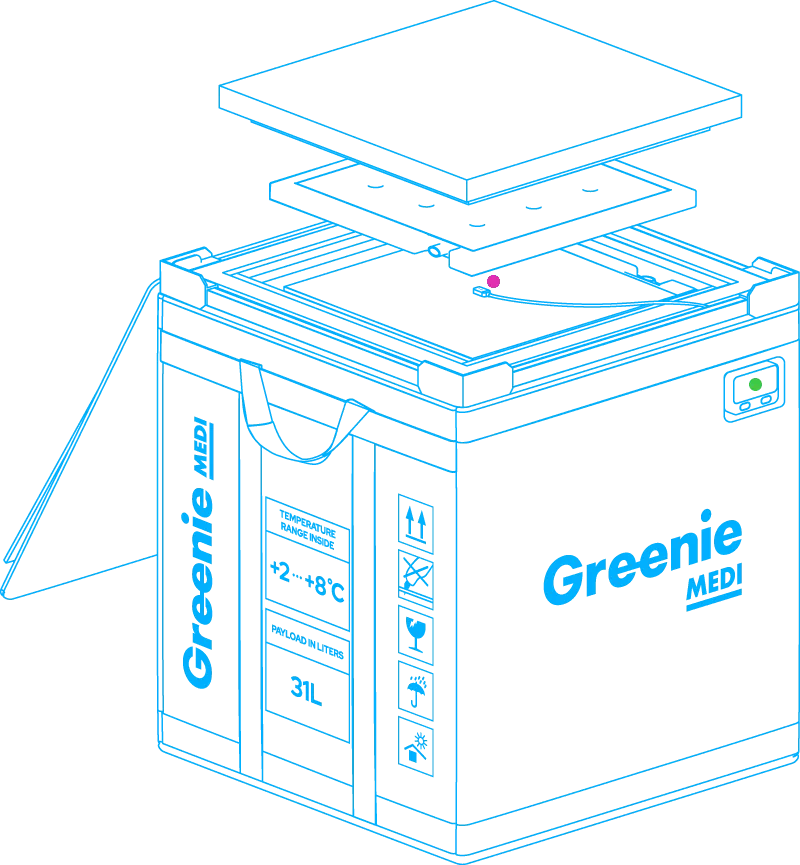

User Manual for TTL

1.

Place the TTL probe in the Green Medi box to sense the temperature of the product

2.

Check the temperature of the product through the TTL screen

3.

Temperature data will be saved in the server by TTL reader app

ISTA Certified
LAB

S.lab Asia is the 1st and sole company in Korea to be certified with ISTA 7E*, a temperature validation test based on ISTA standards.

Our team consists of experts on temperature tests and works with verified and calibrated chambers

* ISTA 7ETesting based on ISTA 7E standards is recommended to comply with Federal Drug Administration (FDA) and Center for Drug Evaluation and Research (CDER) guidelines.It also validates the thermal performance of insulated shipping containers

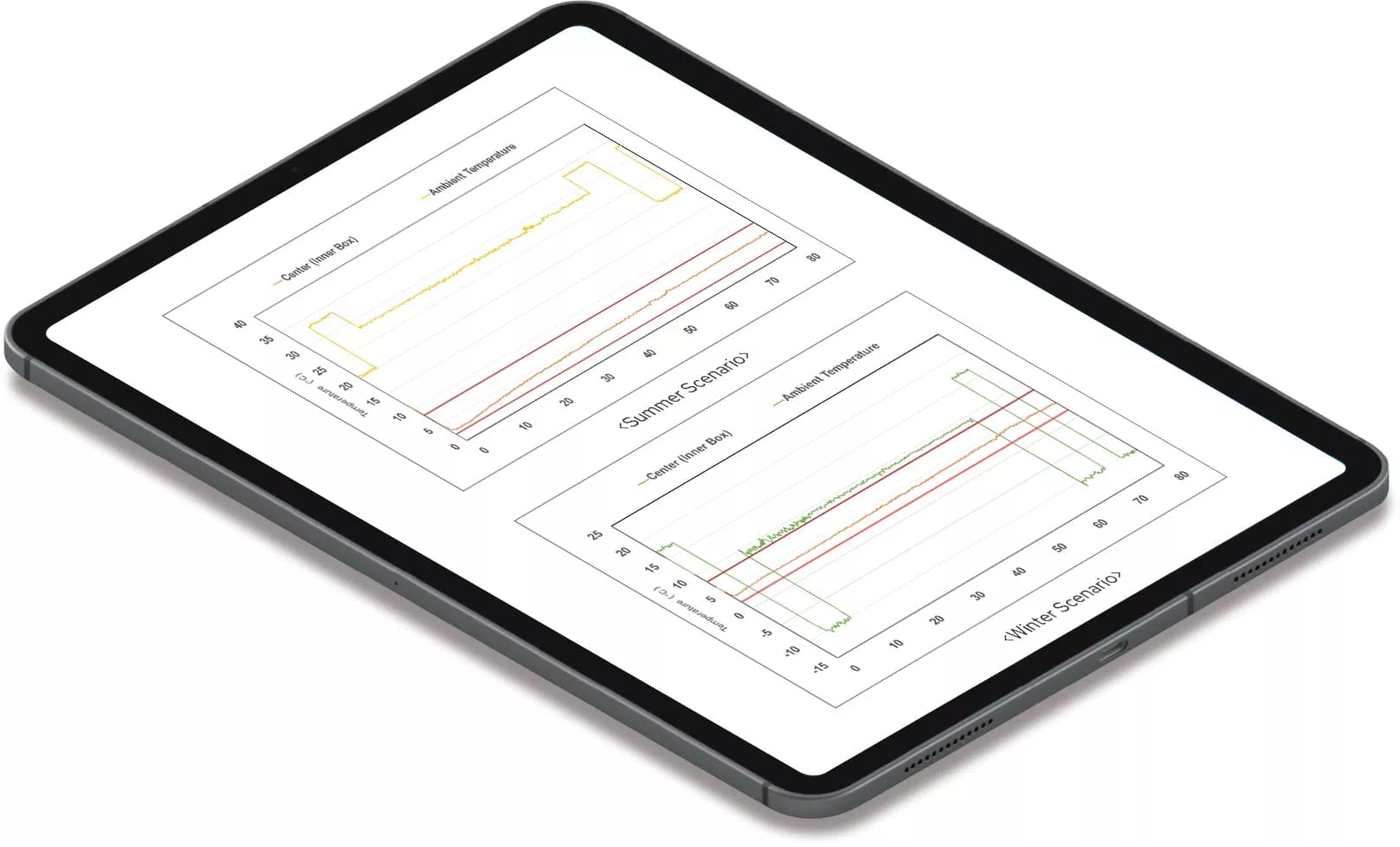

Qualification
Report

ISTA 7D & 7E-certified Greenie Lab publishes Qualification Reports(QR) after testing.
Raw data is shared with customers.
Tests are proceeded with verified equipment and undergo periodic calibration.

Qualification
ISTA 7D/ 7E

Summer and winter portfolios that include temperature validation tests carried out in summer and winter environments, respectively

*ISTA 7D
Certification of thermal performance testing on packaging (boxes) to evaluate the effects of external temperature exposure on products placed inside

Milestones

2020

The number one player of the Covid-19 vaccine distribution market in Korea

2020

Greenie Lab acquired ISTA 7D/7E certification
Launched the Greenie MEDI, a COVID-19 vaccine distribution packaging solution

2019

Greenie ECO released

2015

Built overseas branches in Singapore, Malaysia, Thailand, HongKong and SF

2014

Founded in South Korea
